Trail Mix for the Petite Cyclist

A quick summary of the compromises that have to be made when designing bicycles for people under five feet, five inches tall.

Rodriguez Bicycles Home

Compromise 1, Accept Toe Strike
Some manufacturers choose to compromise safety instead of handling. By designing a bike for proper trail numbers, and a short top tube, this manufacturer has designed a bicycle that is very dangerous when trying to avoid an obstacle (like a car door or pedestrian) when riding. At Rodriguez, we no longer build with this much toe strike because we have had to buy back so many small bikes over the years for this reason. No matter what someone tells you, you're not going to get used to it, and too much toe strike is not OK.

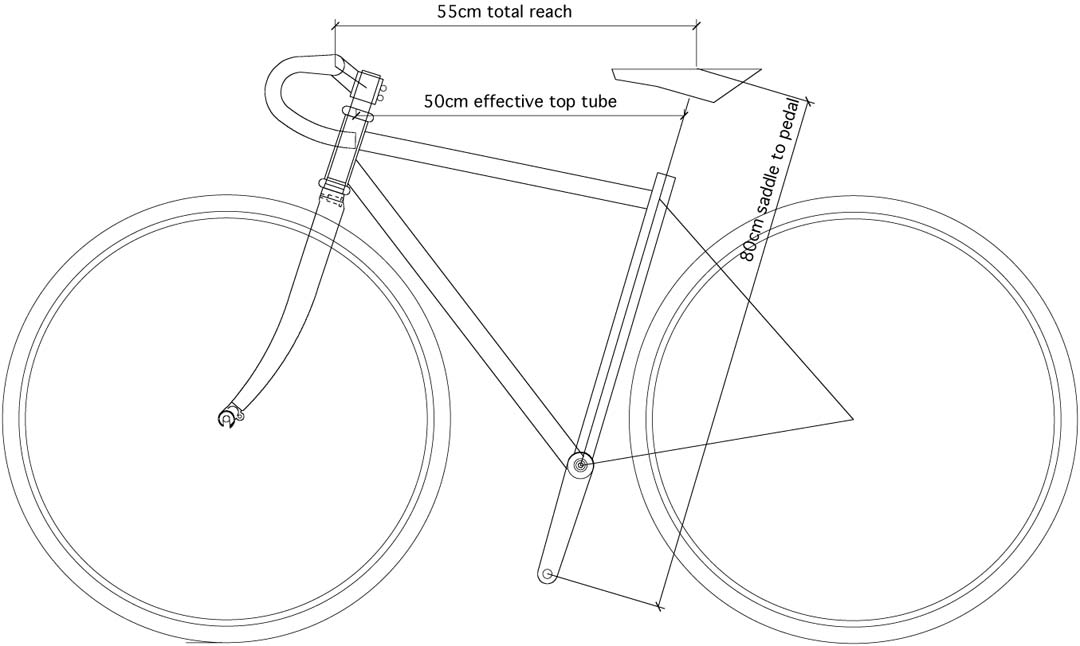

This drawing is an exact re-creation of an actual bike that came in for repairs because the customer crashed while trying to avoid a car door. The rider was confused as to why they went down, but was sure they didn't hit the car door.

The picture on the left shows that the bike looks perfectly fine, and normal to the untrained eye. The fit measurements line up just right for most women around 5'3" tall. The same drawing to the right shows the issue of toe-strike.

Frame drawing with toe overlap Frame drawing with toe overlap highlighted

Compromise 2, The Magic Top Tube
On the face of things, this second bike has no toe overlap, acceptable handling geometry, and the right fit numbers. What the untrained eye doesn't see here is that this is actually a trick. The seat tube angle has been designed very steep, so the top tube is artificially shortened. This way the manufacturer can list the bike in a catalog with a short top tube.

In real life, this is the worst compromise for most riders because it makes the reach almost impossible to shorten. Riders that have bikes like this soon find out that their knee is way too far forward and they have developed knee pain when they ride long distances. The only way to correct it is to push the seat way back, effectively lengthening the reach to the bars too far for a shorter rider. Now the rider needs a stem that's shorter than any thing available. Unless your fit numbers call for a really steep seat angle, I recommend against this option.

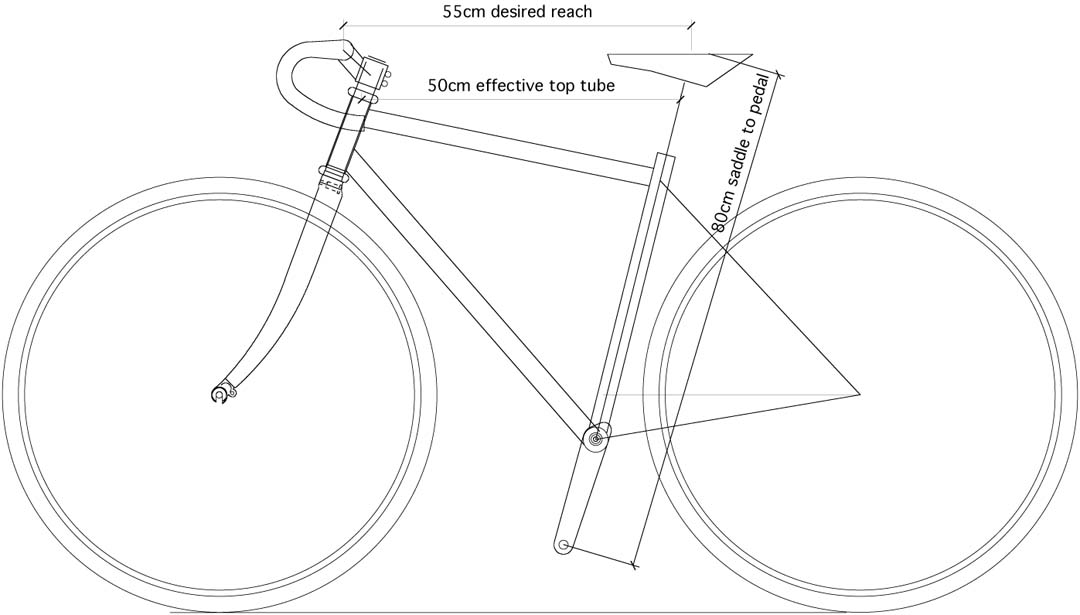

On the left, you can see that this bike looks normal. On the right, you see that this is actually the worst way to design a small bike with 700c wheels if you consider fit and control as important. Many, many companies use this slight of hand to pass off a small bike as 'women's specific' design.

frame drawing with sneaky geometry frame drawing with sneaky geometry highlighted in red

Compromise 3, Ignore Control All Together
One way to get the big wheel out of the way of the rider's foot is to slacken the head tube angle.....a lot...like a chopper. This option says "let's build the bike to fit right, and we don't care how it handles". The bike drawn below is an exact re-creation of an expensive titanium custom bike that a 5' 2" tall woman brought in because it didn't handle well. When I rode the bike, I would liken the handling to my grandfather's 1966 Ford pickup without power steering. ie....it was a chore to steer this bike.

Although this option allows for a carbon fork, I suggest strongly that you try it for a weekend before you invest in a bike built like this. I also suggest that you try compromise 4 and 5 as well. I think that you'll find that handling characteristics are much more important that you may think.

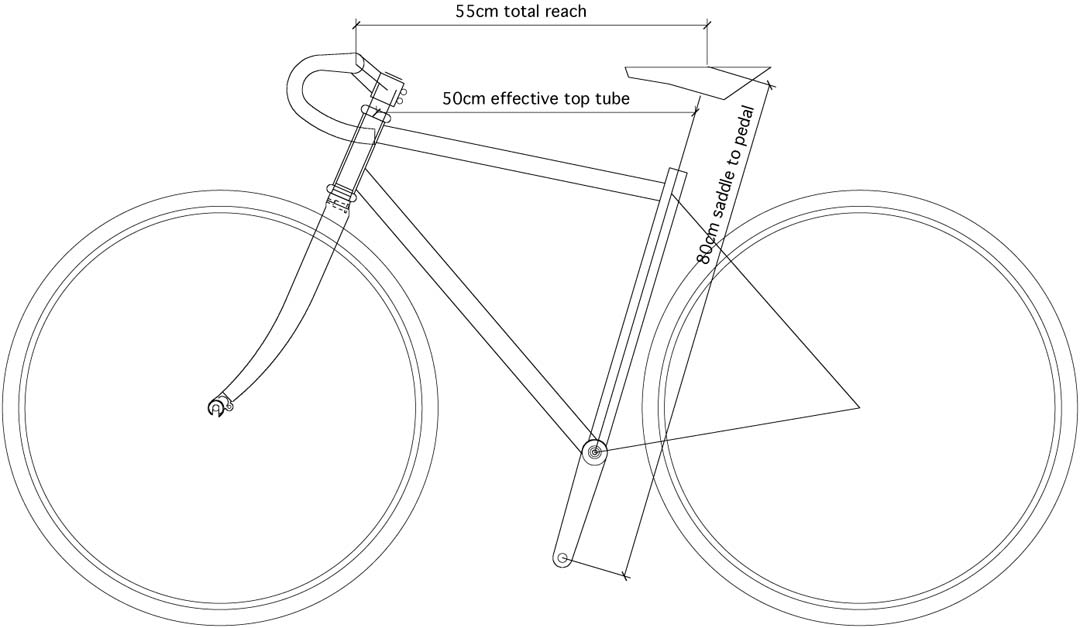

On the left, you can see that this bike looks normal to the untrained eye. On the right, you can see the result of a 'chopper-style' front end.

chopper bike frame drawing chopper frame drawing with huge trail number pointed out

Compromise 4, Go Old-Style
The very best way to put a 700c wheel on a smaller bike is the same way that we used to do it in the 1970's and 1980's.....use a steel fork. By using a steel fork, we have the option to put a custom amount of rake in the fork to offset a slack steering angle. This keeps the handling characteristics correct, and allows us to build to the proper fit and knee angle.

Proportional wheels are always going to give the bike better handling, but this compromise will allow those who really want 700c on a small bike to have them. The drawbacks to this option are that the fork ends up being heavier, and you still have some issues related to large wheels on a smaller bike. Read what what a serious athlete of smaller stature has to say on that subject.

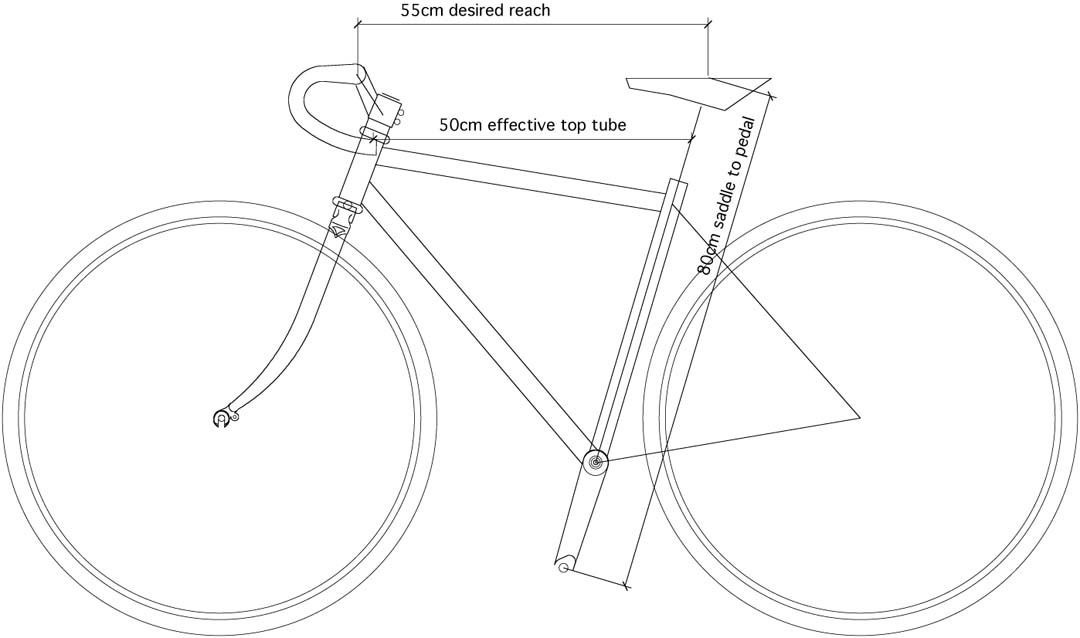

On the left, you can see that this bike looks normal to the untrained eye. Actually, it looks (and rides) a lot like the an old Peugot or Raleigh from the 1970's. On the right, you can see that it results in pretty satisfactory numbers as well. This option is preferable to 3 previous options, but doesn't really provide the petite rider with the same level of quick handling and control that the taller riders get on their bikes.

frame drawing with a custom fork Pointing out on the same drawing at left the custom fork angles

Compromise 5, Perfectly Proportional but more limited selection of tires
The very best way to build a smaller bike considering handling, comfort, fit, and speed is to use wheels that are proportional to the frame size. Using a 650c wheel allows the builder to correct for all of the drawbacks listed above and use lighter wheels and carbon fork as desired.

The drawbacks to 650c wheels are that your tire choices are more limited. The cycling industry ignores the needs of female cyclists to a very large extent, and stocking 650c tires just isn't cool. If you ride widths from 23mm to 28mm, and you don't mind carrying a spare, then you'll have no problems with 650c.

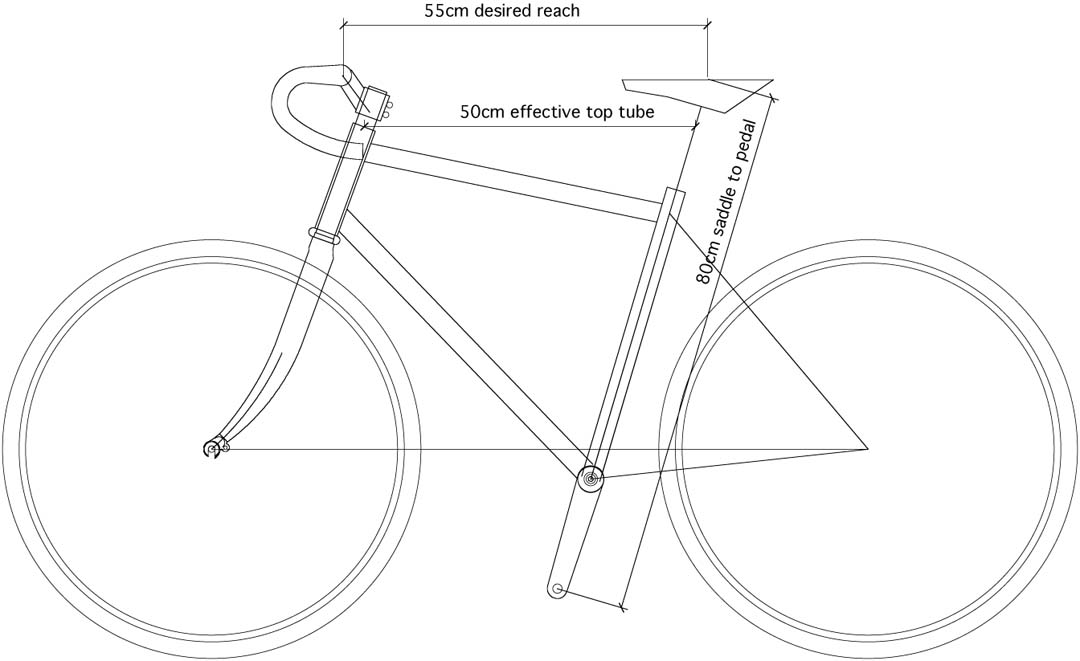

On the left, you can see that this bike looks well designed and proportional. On the right, you can see that all of the fit measurements are right, as well as the handling geometry. The only compromise being a more limited tire selection. The petite rider can experience the exact same performance and control as taller riders do on their bikes.

Frame drawing with a 650c wheelset Frame drawing with 650 wheels showing no toe overlap, normal trail numbers and a proportional top tube length

There you have it. A full graphic illustration of the ups and downs of wheel sizes and smaller bikes. A lot of smaller riders and women get a lot of advice from friends who ride, but aren't actually bike designers. We're happy to build your smaller bike with 700c or 650c wheels. I think that it's important that you consider the differences as explained by someone who designs bicycles for a living.
